A complete end-to-end IoT hardware and software solution built and deployed in Kenya — a solar-powered, off-grid mobile milk ATM that dispenses Milk, Yogurt, Sweet Lala and Sour Lala using a cashless RFID payment system. Designed, programmed and delivered by a single engineer in under 2 months, with zero internet dependency and a custom-built offline Android application for tag management.
|
4
Products Dispensed
|
<7
Days to Program
|
|
<2
Months Delivered
|
0
Internet Required
|
What It Does

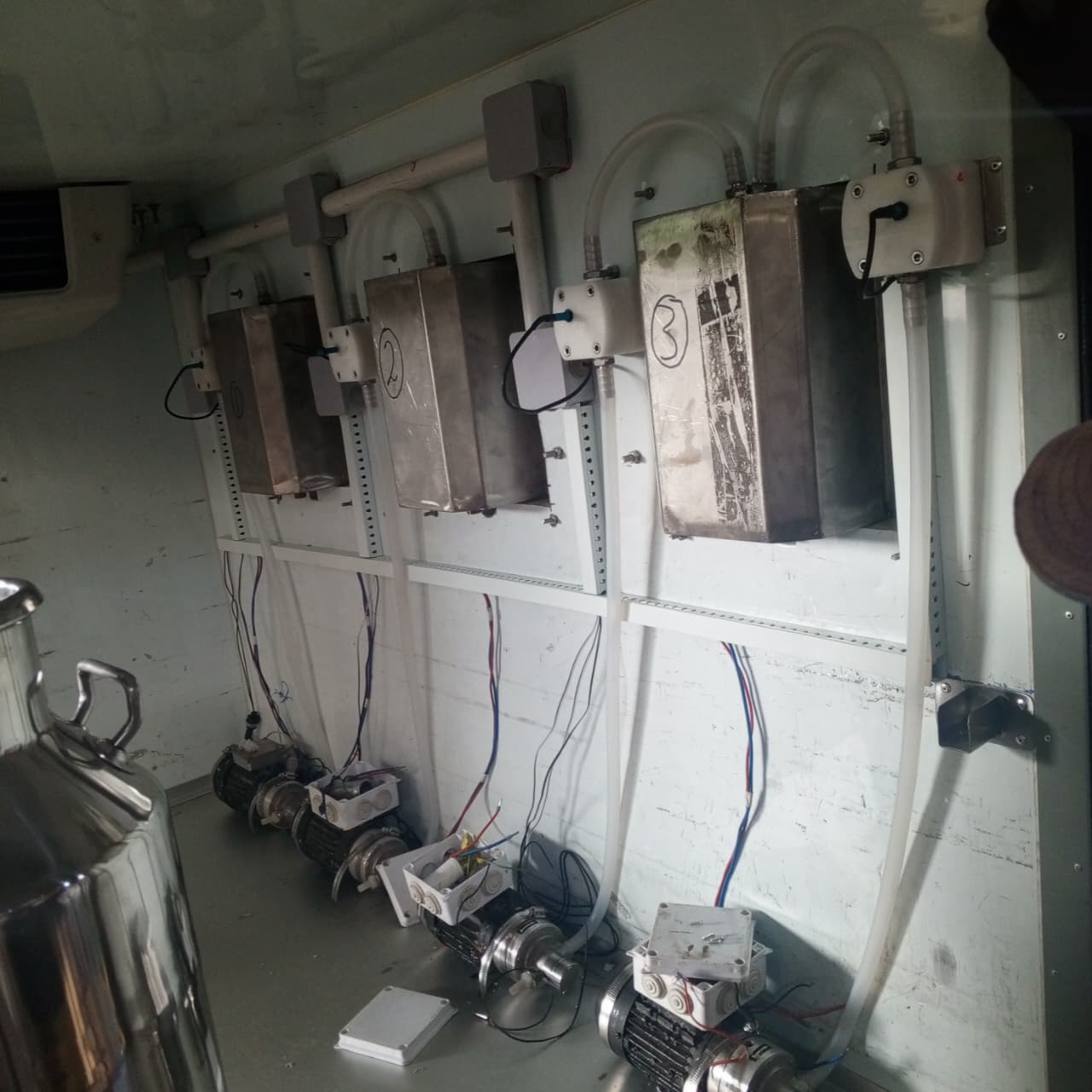

Dispenses fresh Milk, Yogurt, Sweet Lala and Sour Lala — stored cold inside the vehicle's integrated refrigeration system. The entire vehicle interior functions as a mobile refrigerator, keeping all products fresh at all times.

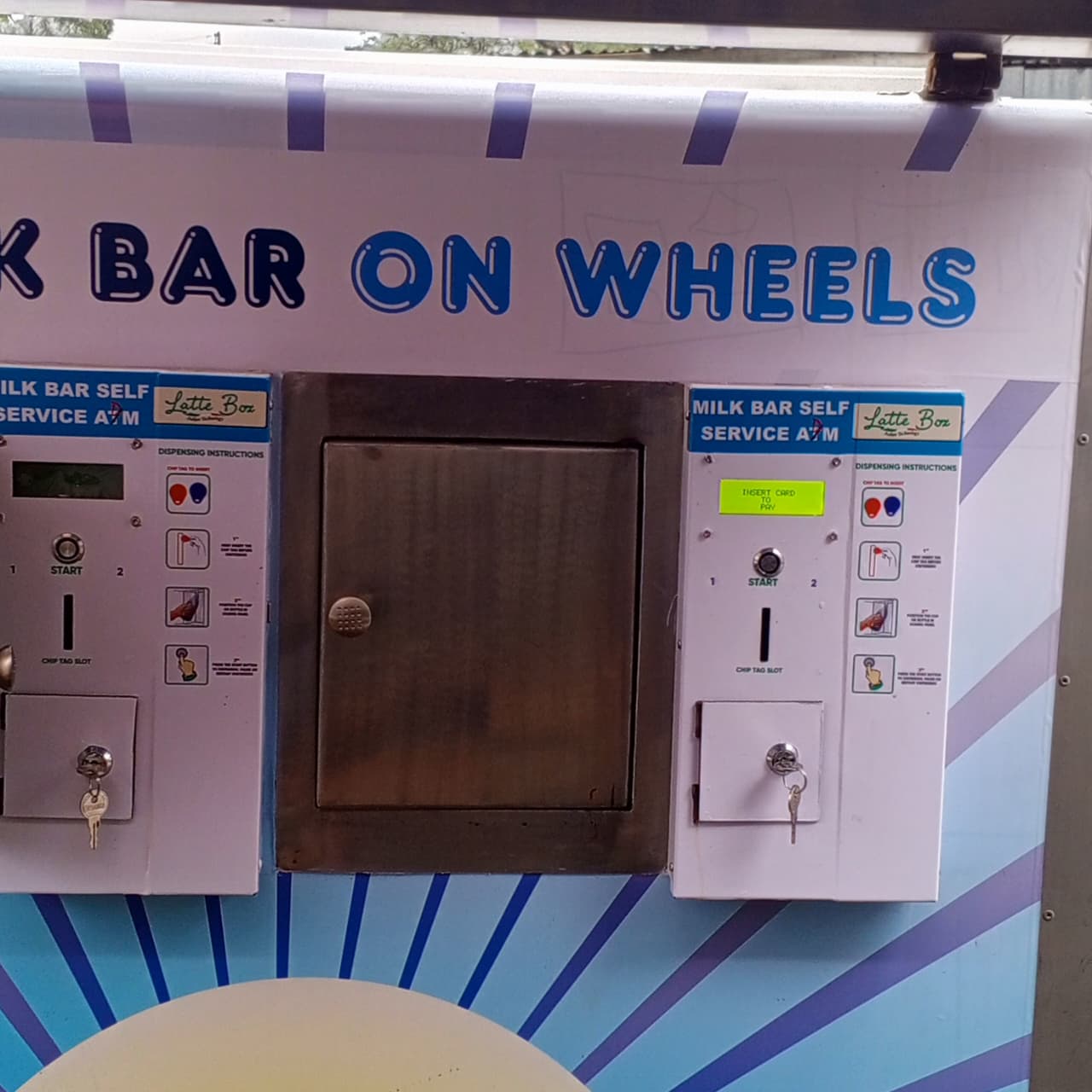

Customers tap a pre-loaded RFID tag to pay and dispense their product. Value is loaded onto tags via a dedicated Android application — no cash, no internet connection, no third-party payment gateway required.
The entire system runs on solar energy with no national grid dependency. Operates reliably in rural Kenya, towns and urban areas — ideal for underserved markets with unreliable power supply.
Being vehicle-mounted is a strategic business advantage. The ATM travels across different counties in Kenya, stopping at various locations — expanding market reach without increasing infrastructure costs.
Engineering Highlights
Standard RFID tags available locally in Kenya can be cloned or rewritten by any compatible reader. A custom encryption and access-control algorithm was developed from scratch — ensuring only the system's authorized hardware can read or write the tags, eliminating fraud, cloning and hacking risk.
A dedicated Android app was built specifically for loading monetary value onto RFID tags via OTG cable. The tablet has never been connected to the internet since purchase — a fully air-gapped environment that eliminates all remote attack vectors.
The complete embedded system was programmed and validated on a desk setup in under 7 days. The full contract — firmware development, Android app, custom security, hardware upgrades, panel redesigns and real-world deployment across Kenya — completed and handed over in under 2 months.
Outcome
The Mobile Milk ATM is live and actively doing business across counties in Kenya. Customers enjoy a modern self-service dairy experience — fresh cold products, cashless payment, and zero queues. The system runs with zero internet, zero grid dependency and zero third-party payment processors. This project demonstrates the capability to research, design, build and deploy a complex secure IoT system in Kenya from scratch — on time and without cutting corners on quality or security.
Technologies Used
|
💾
|
Embedded Systems Programming
Firmware development & hardware control logic
|
|
📡
|
RFID Hardware Integration
Writable RFID tags, readers and writer modules
|
|
🔐
|
Custom Encryption Algorithm
Proprietary tag security blocking unauthorized access
|
|
📱
|
Android App Development
Fully offline app for RFID tag value loading
|
|
🔌
|
OTG Serial Communication
Wired app-to-writer link with zero wireless exposure
|
|
☀️
|
Solar Power Systems
Off-grid solar energy powering the full system
|
|
🌐
|
IoT System Design
Sensors, actuators and controller integration
|
|
🛡️
|
Air-Gapped Security Architecture
Zero internet design across all system layers
|
